Jet Propulsion Laboratory Edwards Facility, Test Stand D, Edwards Air Force Base, Boron vicinity, Kern County, CA - 23, Antique Print

Drawn from the Library of Congress archive, this print depicts Jet Propulsion Laboratory Edwards Facility, Test Stand D, Edwards Air Force Base, Boron vicinity, Kern County, CA - 23. The Library holds one of the most comprehensive collections of American and international historical prints in the world.

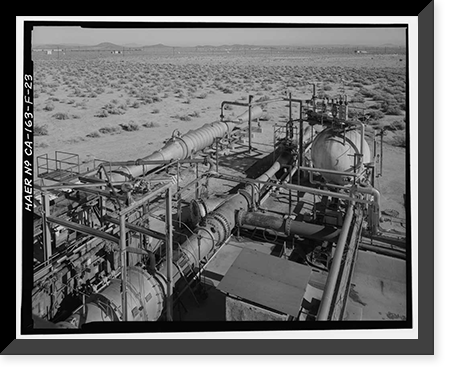

Library of Congress record: 23. Credit BG. View looking northeast down from the tower onto the two horizontal test stations at Test Stand 'D.' Station Dy is at the far left (Dy vacuum cell out of view), with in-line exhaust gas cooling sections and steam-driven 'air ejector' (or evacuator) discharging engine exhausts to the east. The Dd cell is visible at the lower left, and the Dd exhaust train has the same functions as at Dy. The spherical tank is an electrically heated 'accumulator' which supplies steam to the ejectors at Dv, Dd, and Dy stations. Other large piping delivered cooling water to the horizontal train cooling sections. The horizontal duct at the 'Y'.
